SH05 Gigabit 5-Port Industrial Switching Hub Released

InfiPower LLC (head office: Yokohama City, Kanagawa Prefecture) has started selling the SH05G gigabit industrial switching hub equipped with 1000BASE-T/100BASE-TX/10BASE-T (RJ-45) 5 ports. It has a wide operating temperature range of -30°C to 75°C, and is compatible with a wide range of power supply voltages. In addition, lightning countermeasures are taken, and it is highly durable even in harsh environments, and stable operation is possible for a long time. It has a compact size of W105 x D74 x H30mm and can be mounted on a DIN rail. It is suitable for devices that operate for a long time in harsh environments such as IoT devices and surveillance cameras.
https://infipwr.com/product/sh05g/

-30 to 75°C operating temperature, can be used in harsh environments

Lightning surge protection 5000A (8/20μs)

DC12V to 52V power supply compatible, reverse connection protection

Long life, high reliability

Specification

Colorblack
Compliance standardIEEE802.3(10BASE-T), IEEE802.3u(100BASE-TX/FX), IEEE802.3ab(1000BASE-T), IEEE802.3z1000Base-X; IEEE802.3x; IEEE802.3af, IEEE802.3at
Compliant standardEMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS: IEC (EN) 61000-4-2 (ESD): ±8kV contact discharge, ±12kV air discharge
IEC(EN)61000-4-3(RS): 10V/m(80~1000MHz)
IEC(EN)61000-4-4(EFT) : Port: ±4kV CM//±2kV DM;
IEC(EN)61000-4-5(Surge) : Port : ±4kV CM//±2kV DM ;
IEC(EN)61000-4-6(Induced RFI): 3V(10kHz~150kHz), 10V(150kHz~80MHz)
IEC(EN)61000-4-16(Common mode) : 30V cont. 300V,1s
IEC (EN) 61000-4-8 (Magnetic field)
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Switching methodStore & Forward
Maximum transmission speed1000Mbps (1000BASE-T)
Port configuration1000BASE-T/100BASE-TX/10BASE-T (RJ-45) x 5 ports
Jumbo frameCorrespondence
Buffer memory1.2Mb
MACaddress table2K
SizeW105×D74×H30mm
Weightabout 360g
Power consumptionMax/3W
Operating environmentOperating temperature/-30 to 75°C, operating humidity/5 to 95% (non-condensing)
Storage temperature/-40 to 75°C, storage humidity/5 to 95% (non-condensing)
MTBF380,000 hours (35°C)
Number of ports5 ports
Communication modeFull Duplex/Half Duplex
Switch fabric14Gbps
Maximum packet forwarding capacity7.44 Mpps
Auto MDI/MDI-XCorrespondence
Auto negotiationCorrespondence

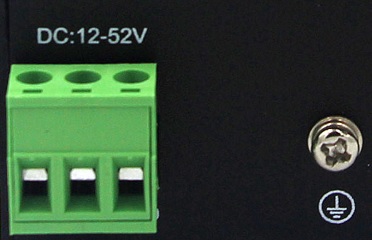

Power supplyterminal block
Input voltage12 to 52 VDC
Input current protection4A
Housing materialaluminum alloy
Compatible DIN railYes (35mm)
Fan specificationssilent fanless
Dust proof standardIP40
