FE14G-SC20 A/B set optical media converter

100Base-T/1000Base-TX

FE14G-SC20 A/B set Optical media converter DIN rail mountable

Category:

Description

A/B set Optical media converter

A compact industrial optical media converter that can operate stably for a long time even in harsh environments with a wide operating temperature range of -30°C to 75°C.
Maximum communication distance 20KM with A/B set, with 4 LAN portsSwitching hubalso has a function

Product features

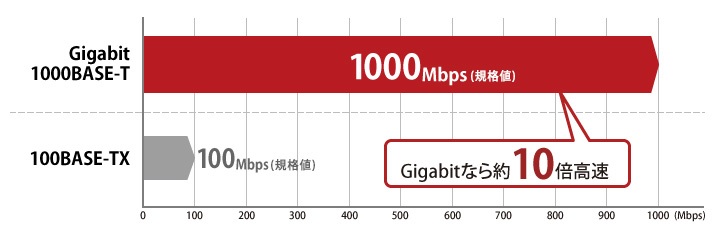

Plug & Play, Gigabit Fast Switching

Maximum transfer distance 20km

-30 to 75°C operating temperature, can be used in harsh environments


Lightning surge protection 5000A (8/20μs)


DC12V to 52V power supply compatible, reverse connection protection


Long life, high reliability

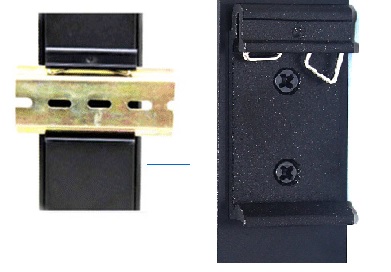

Easy mounting with integrated DIN rail bracket

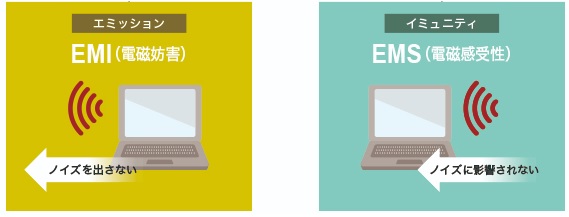

Various EMS and EMI certifications for high durability


Aluminum case for easy heat dissipation, fanless specification


All ports support AUTO-MDIX and AUTO-Negotiation



Specification

Color black
Compliance standard IEEE802.3(10BASE-T), IEEE802.3u(100BASE-TX/FX), IEEE802.3ab(1000BASE-T), IEEE802.3z1000Base-X;IEEE802.3x;
Compliant standard EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS: IEC (EN) 61000-4-2 (ESD): ±8kV contact discharge, ±12kV air discharge
IEC(EN)61000-4-3(RS): 10V/m(80~1000MHz)
IEC(EN)61000-4-4(EFT) : Port: ±4kV CM//±2kV DM;
IEC(EN)61000-4-5(Surge) : Port : ±4kV CM//±2kV DM ;
IEC(EN)61000-4-6(Induced RFI): 3V(10kHz~150kHz), 10V(150kHz~80MHz)
IEC(EN)61000-4-16(Common mode) : 30V cont. 300V,1s
IEC (EN) 61000-4-8 (Magnetic field)
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Switching method Store & Forward
Maximum transmission speed 1000Mbps (1000BASE-T)
Port configuration 1000BASE-T/100BASE-TX/10BASE-T (RJ-45) 4 ports,
1000BaseFX port (default SC, FC/ST/SFP optional) 1 port
Jumbo frame Correspondence
Buffer memory 1.2Mb
MACaddress table 8K
Size W105×D74×H30mm
Weight about 360g
Power consumption Max/3W
Operating environment Operating temperature/-30 to 75°C, operating humidity/5 to 95% (non-condensing)
Storage temperature/-40 to 75°C, storage humidity/5 to 95% (non-condensing)
MTBF 380,000 hours (35°C)
light wavelength 1310nm/1550nm single mode single core
Maximum transfer distance 20 km
Communication mode Full Duplex/Half Duplex
Switch fabric 15.2Gbps
Maximum packet forwarding capacity 11.3056 Mpps
Auto MDI/MDI-X Correspondence
Auto negotiation Correspondence
Power supply terminal block
Input voltage 12 to 52 VDC
Input current protection 4A
Housing material aluminum alloy
Compatible DIN rail Yes (35mm)
Fan specifications silent fanless
Dust proof standard IP40
