iUPS-DD High Output DC UPS (Uninterruptible Power Supply)

1 year warranty
Model capacity Input Output Size
iUPS-DD1205 44.4wh

(Special specification 88.8WH)

 DC12V/6A DC5.5*2.1mm DC 12.5V 5A DC5.5*2.1mm 137*124*44mm
iUPS-DD2403 44.4wh

(Special specification 88.8WH)

 DC24V/4A DC5.5*2.1mm DC 24V 3A DC5.5*2.1mm 137*124*44mm

User Manual Download

Category: Tags: ,

Description

Backup of DC12V/24V devices in the event of momentary voltage drop or power failure

Powerful specification of 12V 5A / 24V 3A (44.4WH or 88.8WH) achieves over 30 minutes power outage retention time (at rated maximum current).
It is ideal as a power supply for communication equipment, security cameras, wireless equipment, broadcasting equipment, etc.

feature

  • Can be charged from a commercially available 12V AC adapter
  • Small size, powerful output
  • Preferentially distribute current to loads after power failure recovery with constant charging current

Electrical specifications

1,Input
minimum Rating maximum unit
1.1 Input voltage (DC) – 12 – V.
1.2 Input voltage range (DC) 11.1 12 14.5 V.
1.3 charge conversion efficiency – ≥85% – –
1.4 Input current – 5.55 6 A.
1.5 charging current – 550 – mA
 2,Output
minimum Typical maximum unit
2.1 output voltage 10.8 12.5 12.8 V.
2.2 Output ripple voltage – 0.1 – V.
2.3 output current – 5 – A.
2.4 Output overcurrent protection threshold – 5.5 – A.
2.5 Output conversion efficiency – 85 – %
 3,lithium ion battery protection
  item sign contents　 value


3.1



 overcharge V.DET1 Overcharge protection start voltage 12.6±0.025V
TVDET1 Time until protective action 1000ms
V.REL1 Overcharge protection release voltage 12.1±0.025V
3.2 over discharge V.DET2 Overdischarge protection start voltage 9.1±0.1V
TVDET2 Time until protective action 82nS
3.3 over current V.DET3 Overcurrent protection start voltage 0.0375±0.025V
IDP Protection current upper limit 12.5A
TVDET3 Time until protective action 5 to 15ms
Unprotection condition load disconnect


3.4

 short circuit protection start condition External load short circuit
T.SHORT Time until protective action ≤12us
Unprotection condition External short-circuit release
3.5 internal resistance R.DS Main circuit continuity resistance V.C.=11.1V, RDS≤60mΩ
 4,standby current
4.1 standby current IDD IDD≤30.0μA



Ambient temperature/humidity0 to +55°C/10 to 90%RH (no condensation)

Storage ambient temperature/humidity-20 to +55°C/10 to 90%RH (no condensation)

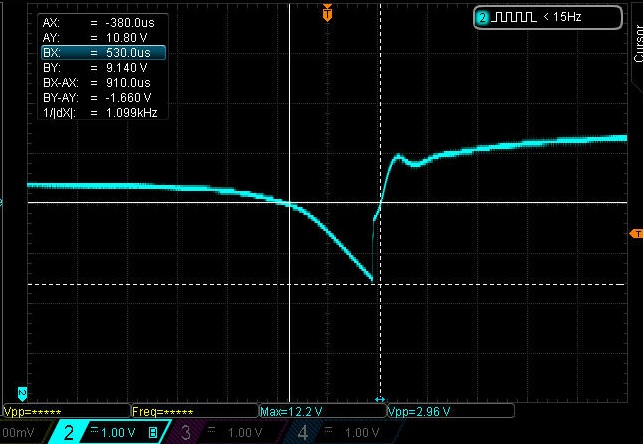

I/O voltage time chart during backup transition
