InfiPower GUARD 1

For price and delivery,please contact us.

regular one year guarantee

--> Specifications, settings, manual download (PDF)

Indoor use (enters current collection box)

Package contents:

InfiPower GUARDbody,5 current sensors,5V1 power adapter (input voltage 100-240V),1 grid voltage AC connector



Cases of power transmission cables and solar panels being stolen from solar power plants have occurred all over the country. As an anti-theft measure, frequent patrols are time-consuming and labor-intensive, and general security services also incur significant monthly costs.

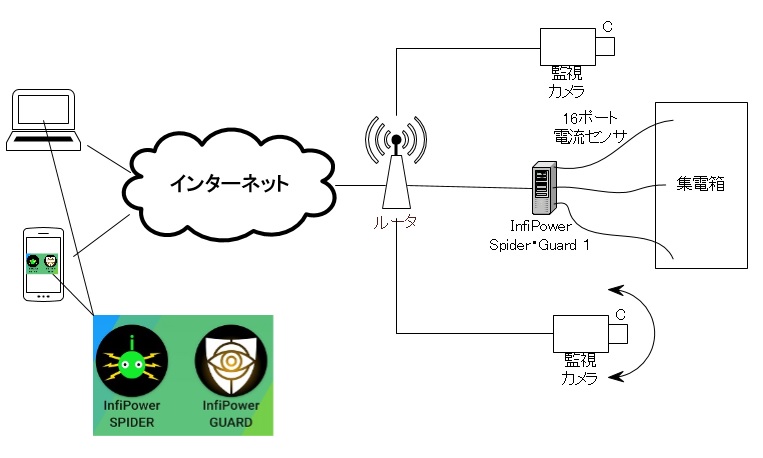

InfiPower's remote security system "InfiPower GUARD 1", which specializes in solar power generation facilities,"InfiPower Spider"Security cameras (CB2M4I6-8-35, CS62M20HI), you can create a private remote security system. There is no operational cost other than the communication cost of the cheap SIM card.













Key features:

  • Smartphone app module "InfiPower GUARD

If you register the power plant you want to monitor with the "InfiPower GUARD" module of the application "InfiPower", you will receive real-time warning emails and push messages from the power plant to multiple users, ring your smartphone, and automatically record the local situation while the camera automatically records. You can check it and if necessary, you can take measures such as reporting to the police. For notification, if you set the latitude, longitude and address information of the installation location in advance, the location information will appear on the screen when an event occurs,You can inform the police properly without panicking when calling 110.




























  • Freely operate security cameras

    With a PTZ camera, you can operate it freely, specify the image quality and transmission mode according to the network speed, and monitor details from any angle.
















  • Record event content and recording history for post-mortem analysis and evidence submission

In conjunction with current sensors, users can check the local situation while the camera starts recording automatically when triggered

can be handled by















[Product Features]

  1. Since it is a private system that does not use the cloud, there is no server cost.
  2. InfiPower GUARD server will constantly monitor the monitored object, and when the voltage and voltage exceed the threshold range, it will immediately send an alarm email and push a warning message to your smart phone
  3. You can remotely operate multiple security cameras (InfiPower certified products)
  4. Works from both web browser and smartphone app
  5. InfiPower GUARD servers do not use electrolytic capacitors for extended service life
  6. Any SIM card with a global IP address can be used
  7. The size of a business card case can be installed even in a narrow space
